1204 K Self Aligning Ball Bearing with 20 mm Bore

Short Description:

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Bore type : K

Tapered bore taper 1:12


Product Detail

Product Tags

1204 K Self Aligning Ball Bearing  detail Specifications:

Material : 52100 Chrome Steel

Limiting Speed : 20000 rpm

Bore type : K tapered bore taper 1:12

Weight : 0.11 kg



Main Dimensions:

Bore diameter (d) : 20 mm

Outer diameter (D) : 47 mm

Width (B) : 14 mm

Chamfer dimension (r) min. : 1.0 mm

Dynamic load ratings (Cr) : 10.1 KN

Static load ratings(Cor): 2.6 KN



ABUTMENT DIMENSIONS

Abutment diameter shaft (da) min. : 25.6 mm

Abutment diameter housing (Da) max.: 41.4 mm

Fillet radius(ra)max. : 1.0 mm

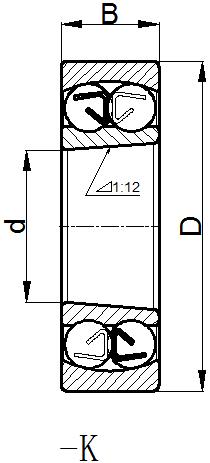

Self-Aligning Ball Bearings  open type with K
