    2314 K Self Aligning Ball Bearing with 70 mm Bore Featured Image
    • 2314 K Self Aligning Ball Bearing with 70 mm Bore

    2314 K Self Aligning Ball Bearing with 70 mm Bore

    Short Description:

    Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

    Bore type : K

    Tapered bore taper 1:12


    Product Detail

    Product Tags

    2314 K Self Aligning Ball Bearing  detail Specifications:

    Material : 52100 Chrome Steel

    Limiting Speed : 6000 rpm

    Bore type : K tapered bore taper 1:12

    Weight : 3.95 kg



    Main Dimensions:

    Bore diameter (d) : 70 mm

    Outer diameter (D) : 150 mm

    Width (B) : 51 mm

    Chamfer dimension (r) min. : 2.1 mm

    Dynamic load ratings (Cr) : 106.40 KN

    Static load ratings(Cor) : 35.15 KN



    ABUTMENT DIMENSIONS

    Abutment diameter shaft (da) min. : 82 mm

    Abutment diameter housing (Da) max.: 138 mm

    Fillet radius(ra)max. : 2.0 mm

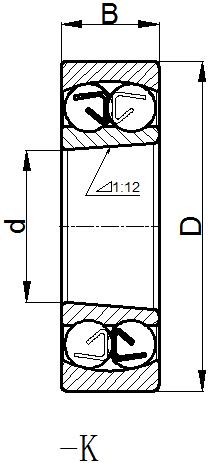

    Self-Aligning Ball Bearings open type with K
