Combined Bearings Page 9

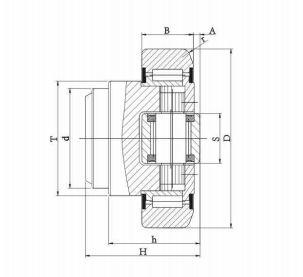

Axial Bearing eccentric adjustable with tooth form shaft
Bearing No.	Dimensions(mm)								Basic load rating(KN)				Weight(Kg)
Bearing No.	D	T	d	H	h	B	A	S	Cr	Cor	Ca	Coa	Weight(Kg)
CRA62.5-3E	62.5	42	30	37.5-39	30.5-32	20	4	20	31	35.5	11	11	0.53
CRA64.8-9E	64.8	42	30	37.5-39	30.5-32	20	4	20	31	35.5	11	11	0.55
CRA70.1-5E	70.1	48	35	44-45.5	36-37.5	23	4	20	45.5	51	11	11	0.80
CRA73.8-2E	73.8	48	35	44-45.5	36-37.5	23	4	20	45.5	51	11	11	0.80
CRA78-1E	78.0	54	40	48-49.5	37-38.5	23	3.5	26	48	56.8	18	18	1.00
CRA78.3-20E	78.3	54	40	40-41.5	29-30.5	23	3.5	26	48	56.8	18	18	0.87
CRA81.8-7E	81.8	54	40	48-49.5	37-38.5	23	3.5	26	48	56.8	18	18	1.05
CRA88.4-2E	88.4	59	45	57-58.5	44-45.5	30	4	26	68	72	23	23	1.62
CRA92.8-1E	92.8	59	45	57-58.5	44-45.5	30	4	26	68	72	23	23	1.65
CRA101.6-1E	101.6	69	50	46-48	33-35	26	4.5	30	73	82	25	27	1.74
CRA108.5-3E	108.5	69	55	54-56	40-42	31	4	30	81	95	25	27	2.27
CRA107.7-3E	107.7	69	60	69-71	55-57	31	4	30	81	95	25	27	2.82
CRA111.8-7E	111.8	69	60	69-71	55-57	31	4	30	81	95	25	27	2.85
CRA123-33E	123.0	80	60	72.3-76.3	56-60	37	5	34	110	132	31	36	3.60
CRA127.8-5E	127.8	80	60	72.3-76.3	56-60	37	5	34	110	132	31	36	4.00
CRA149.4-1E	149.4	108	60	78.5-82.5	58.5-62.5	45	6	34	151	192	31	36	6.30
CRA153.8-7E	153.8	108	60	78.5-82.5	58.5-62.5	45	6	34	151	192	31	36	6.70
