GAR 10 UK  Rod end bearing with 10 mm bore detail Specifications:

Material :

Housing : carbon steel

Outer ring : bearing steel

Sliding contact surface : steel

Requiring maintenance

Without Sealing

Rod end with external thread, right hand thread

Weight : 0.053 kg

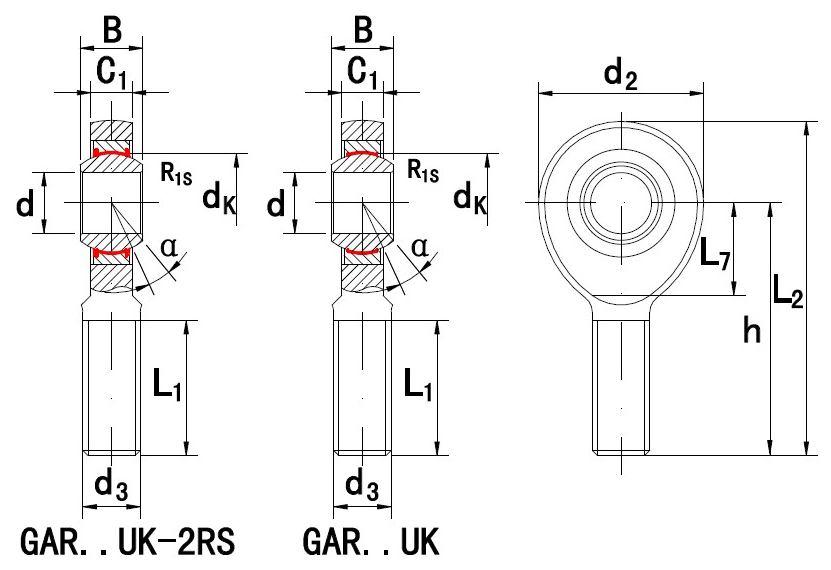

Main Dimensions:

Bore diameter (d) : 10 mm

Thread size (d3) : M10x1.5

Width (B) : 9 mm

Head width (C1) : 7 mm

Thread length (L1 min) : 26 mm

Head diameter (d2) : 29 mm

Length of the flat surface from the bearing bore centre to the shank (L7) : 15 mm

Length of thread (h) : 48 mm

Total length (L2) : 62.5 mm

Ball diameter (dk) : 16 mm

Smallest single chamfer dimension, inner ring (R1s) : 0.3 mm

Tilt angle (a) : 12°
