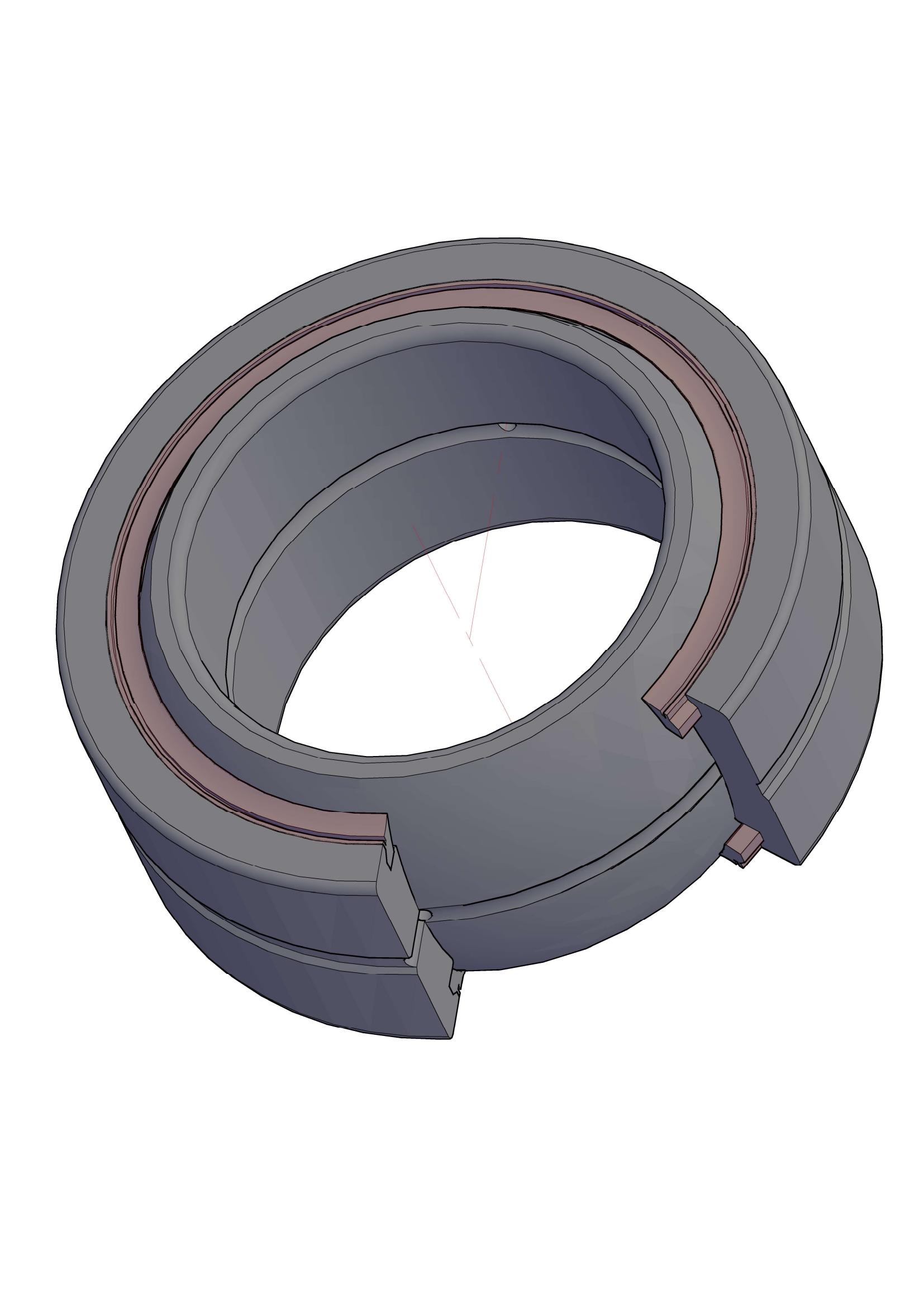

GE 17 ES 2RS Radial spherical plain bearings with 17 mm bore
GE 17 ES 2RS Radial spherical plain bearings detail Specifications:
Material : 52100 Chrome Steel
S: Annular groove and two lubrication holes in the inner and outer rings
Seal Type : Open type
Weight : 0.042 kg
Main Dimensions:
Bore diameter (d) : 17 mm
Outer diameter (D) : 30 mm
Width (B) : 14 mm
Width outer ring (C) : 10 mm
Raceway diameter inner ring (dk) : 25 mm
Chamfer dimension bore(r1 min.) : 0.3 mm
Chamfer dimension outer ring (r2 min.) : 0.3 mm
Angle of tilt : α = 10°
Dynamic load ratings (Cr) : 21.0 KN
Static load ratings (Cor) : 100.00 KN
ABUTMENT DIMENSIONS
Abutment diameter shaft (da min.) : 19 mm
Abutment diameter shaft (da max.): 20.7 mm
Abutment diameter housing (Da min.): 26 mm
Abutment diameter housing (Da max.): 28.3 mm
Fillet radius shaft (ra max.) : 0.3 mm
Fillet radius housing(rb)max. : 0.3 mm
