GIR 12 UK Rod end bearing with 12 mm bore
GIR 12 UK Rod end bearing with 12 mm bore detail Specifications:
Material :
Housing : carbon steel
Outer ring : bearing steel
Sliding contact surface : steel
Requiring maintenance
Without Sealing
Right-hand Thread direction
Weight : 0.096 kg

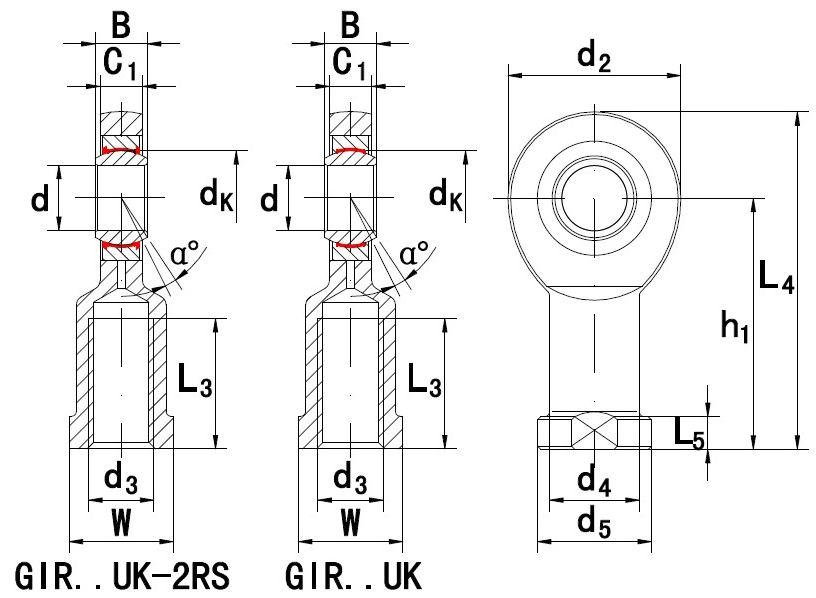

Main Dimensions:
Bore diameter (d) : 12 mm
Thread size (d3) : M12x1.75
Width (B) : 10 mm
Head width (C1) : 8 mm
Thread length-female (l3 min) : 23 mm
Wrench flat width (W) : 19 mm
Head diameter (d2) : 34 mm
Base to Center-female (h1) : 50 mm
Housing height -male (L4) : 67 mm
Wrench flat height (L5) : 6.5 mm
Shank diameter (d4) : 17.5 mm
Shank diameter,large (d5): 22 mm
Ball diameter (dk) : 18 mm
Tilt angle (a) : 11°
