KR19 -SK-PP Cam follower (stud-type track roller bearing ) detail Specifications:

Material : 52100 Chrome Steel

Construction : Single Row , SK (Hexagon socket)

Seal : sealed on both sides

Limiting speed : 5600 rpm

Weight : 0.029 kg

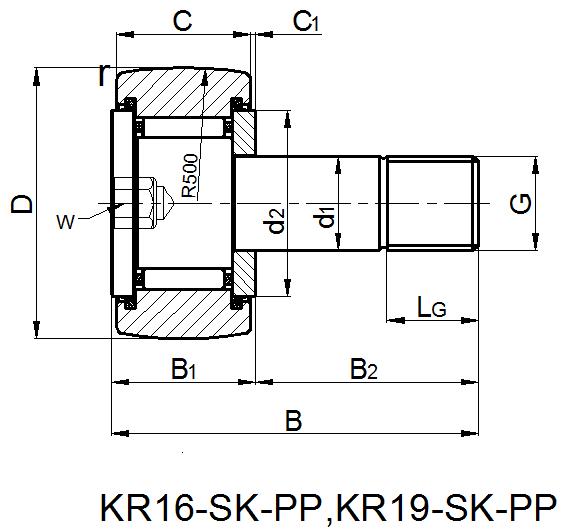

Main Dimensions:

Outer diameter (D) : 19 mm

Fit diameter of roller stud / stud (d1) : 8 mm

Total length (B) : 32 mm

Witdh of thrust washer (B1) max. : 12.2 mm

Length shank on stud (B2) : 20 mm

Width outer ring (C) : 11 mm

Distance face outer ring to face side washer (C1) : 0.6 mm

Chamfer dimension (r) min. : 0.15 mm

Outside diameter flange ring (d2) : 15 mm

Thread (G) : M8X1.25

Length thread (LG) : 10 mm

Width across flats (W) : 4 mm

Dynamic load ratings (Cr) : 3.50 KN

Static load ratings (Cor) : 4.00 KN
