L Type Four Point Contact Slewing Bearing Page 2

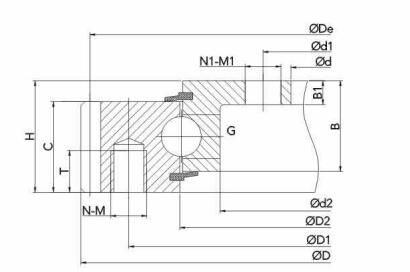

Bearing No.	Dimension (mm)
Bearing No.	d	d1	d2	D	D1	D2	H	C	B	B1	N-M	N1-M1	T	De	m	z	k.m	G
91-20 0311/1-07102	204	232	269	404	355	315.5	56	44	44	12	10-M12	12-Φ 18	20	395	5	79	0.5	4-M8*1
91-20 0311/1-07103	205 H8	232	269	404	355	317 H8	56	44	44	12	10-M12	12-Φ 18	20	395	5	79	0.5	4-M8*1
21-0411-01	304	332	368	505	455	412.2	56	46	46	12	10-M12	12-Φ 18	20	495	5	99	0	4-M8*1
91-20 0411/1-07112	304	332	369	504	455	415.5	56	44	44	12	10-M12	12-Φ 18	20	495	5	99	0.5	4-M8*1
91-20 0411/1-07113	305 H8	332	369	504	455	417 H8	56	44	44	12	10-M12	12-Φ 18	20	495	5	99	0.5	4-M8*1
FEG 505 20 00 CC LM	304	332	375	504	455	415.5	56	46	46	12	10-M12	12-Φ 18	20	495	5	99	0.5	4-M8*1
21-0541-01	434	462	498	640	585	542.5	56	46	46	12	14-M12	14-Φ 18	20	630	6	105	1	4-M8*1
91-20 0541/1-07122	434	462	499	640.8	585	545.5	56	44	44	12	14-M12	14-Φ 18	20	630	6	105	0.6	4-M8*1
91-20 0541/1-07123	435 H8	462	499	640.8	585	547 H8	56	44	44	12	14-M12	14-Φ 18	20	630	6	105	0.6	4-M8*1
FEG 505 20 00 CC LM	434	462	505	640.8	585	545.5	56	46	46	12	14-M12	14-Φ 18	20	630	6	105	0.6	4-M8*1
21-0641-01	534	562	598	742	685	642	56	46	46	12	16-M12	16-Φ 18	20	732	6	122	1	4-M8*1
91-20 0641/1-07132	534	562	599	742.8	685	645.5	56	44	44	12	16-M12	16-Φ 18	20	732	6	122	0.6	4-M8*1
91-20 0641/1-07133	535 H8	562	599	742.8	685	647 H8	56	44	44	12	16-M12	16-Φ 18	20	732	6	122	0.6	4-M8*1
FEG 750 20 00 CC LM	534	562	602	742.8	685	645.5	56	46	46	12	16-M12	16-Φ 18	20	732	6	122	0.6	4-M8*1
21-0741-01	634	662	698	840	785	743	56	46	46	12	18-M12	16-Φ 18	20	828	6	138	0	4-M8*1
91-20 0741/1-07142	634	662	699	838.8	785	745.5	56	44	44	12	18-M12	16-Φ 18	20	828	6	138	0.6	4-M8*1
91-20 0741/1-07143	635 H8	662	699	838.8	785	747 H8	56	44	44	12	18-M12	16-Φ 18	20	828	6	138	0.6	4-M8*1
FEG 850 20 00 CC LM	634	662	705	838.8	785	745.5	56	46	46	12	18-M12	16-Φ 18	20	828	6	138	0.6	4-M8*1
21-0841-01	734	762	798	950	885	842	56	46	46	12	18-M12	18-Φ 18	20	936	8	117	1	4-M8*1
91-20 0841/1-07152	734	762	799	950.4	885	845.5	56	44	44	12	18-M12	18-Φ 18	20	936	8	117	0.8	4-M8*1
91-20 0841/1-07153	735 H8	762	799	950.4	885	847 H8	56	44	44	12	18-M12	18-Φ 18	20	936	8	117	0.8	4-M8*1
FEG 950 20 00 CC LM	734	762	805	950.4	885	845.5	56	46	46	12	18-M12	18-Φ 18	20	936	8	117	0.8	4-M8*1
21-0941-01	834	862	898	1046	985	943	56	46	46	12	20-M12	20-Φ 18	20	1032	8	129	1	4-M8*1
91-20 0941/1-07162	834	862	899	1046.4	985	945.5	56	44	44	12	20-M12	20-Φ 18	20	1032	8	129	0.8	4-M8*1
91-20 0941/1-07163	835 H8	862	899	1046.4	985	947 H8	56	44	44	12	20-M12	20-Φ 18	20	1032	8	129	0.8	4-M8*1
91-32 0955/1-06115	805	845	893	1096.2	1016	955	90	71	71	21	30-M20	30-Φ 22	40	1080	9	120	0.9	6-M8*1
FEG 1100 32 00 CC LM	805	845	893	1098	1016	955	90	71	71	21	30-M20	30-Φ 22	40	1080	9	120	0	6-M10*1
91-32 1055/1-06125	905	945	993	1198	1116	1055	90	71	71	21	30-M20	30-Φ 22	40	1180	10	118	1	6-M8*1
FEG 1200 32 00 CC LM	905	945	993	1200	1116	1055	90	71	71	21	30-M20	30-Φ 22	40	1180	10	118	0	6-M10*1
21-1091-01	984	1012	1048	1198	1135	1094	56	46	46	12	22-M12	20-Φ 18	20	1184	8	148	1	4-M8*1
91-20 1091/1-07172	984	1012	1049	1198.4	1135	1095.5	56	44	44	12	22-M12	20-Φ 18	20	1184	8	148	0.8	4-M8*1
91-20 1091/1-07173	985 H8	1012	1049	1198.4	1135	1097 H8	56	44	44	12	22-M12	20-Φ 18	20	1184	8	148	0.8	4-M8*1
FEG 1200 20 00 CC LM	984	1012	1055	1198.4	1135	1095.5	56	46	46	12	22-M12	20-Φ 18	20	1184	8	148	1	4-M8*1
91-32 1155/1-06135	1005	1045	1093	1298	1216	1155	90	71	71	21	36-M20	36-Φ 22	40	1280	10	128	1	6-M8*1
FEG 1300 32 00 CC LM	1005	1045	1093	1300	1216	1155	90	71	71	21	36-M20	36-Φ 22	40	1280	10	128	0	6-M10*1
91-32 1255/1-06145	1105	1145	1193	1398	1316	1255	90	71	71	21	42-M20	42-Φ 22	40	1380	10	138	1	6-M8*1
FEG 1400 32 00 CC LM	1105	1145	1193	1400	1316	1255	90	71	71	21	42-M20	42-Φ 22	40	1380	10	138	0	6-M10*1
91-32 1355/1-06155	1205	1245	1293	1498	1416	1355	90	71	71	21	42-M20	42-Φ 22	40	1480	10	148	1	6-M8*1
FEG 1500 32 00 CC LM	1205	1245	1293	1500	1416	1355	90	71	71	21	42-M20	42-Φ 22	40	1480	10	148	1	6-M10*1
