LR50/8 NPPU Yoke Type Track Rollers
LR50/8 NPPU Yoke Type Track Rollers detail Specifications:
Material : 52100 Chrome Steel
Construction : Double Row
Limiting Speed : 10000 rpm
Weight : 0.03 kg

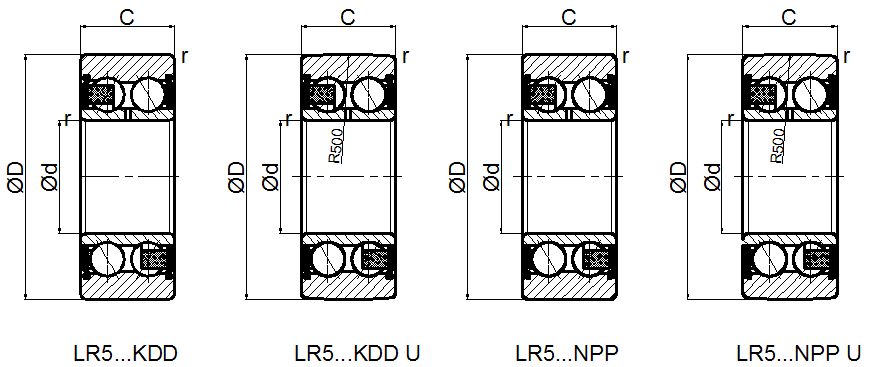

Main Dimensions:
Bore diameter (d) : 8 mm
Tolerance of Bore Diameter : -0.008 mm to 0 mm
Outer diameter (D) : 24 mm
Tolerance of Outer diameter : - 0.009 mm to 0 mm
Width (C) : 11 mm
Tolerance of Width : - 0.12 mm to 0 mm
Chamfer dimension (r) min. : 0.3 mm
Dynamic load ratings (Ca) : 4.30 KN
Static load ratings (Coa) : 2.39 KN
