NCS1820 Needle roller bearings with outer ring, without an inner ring
NCS1820 Needle roller bearings with outer ring, without an inner ring detail Specifications :
Series : Without Inner Ring
Material : 52100 Chrome Steel
Construction : Single Row
Limiting Speed : 15000 rpm
Weight:0.127 kg

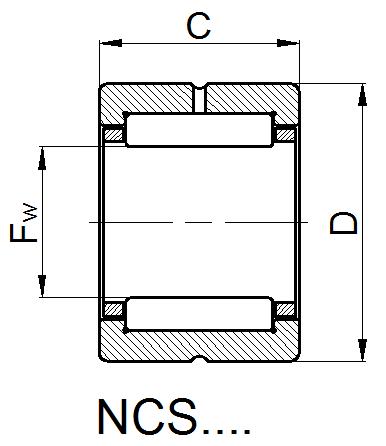

Main Dimensions:
Inner Diameter (Fw) : 28.575 mm
Tolerance of Bore Diameter : 0.023 mm to 0.046 mm
Outer Diameter (D) : 41.275 mm
Tolerance of Outer Diameter : - 0.013 mm to 0 mm
Width (C) : 31.75 mm
Tolerance of Width : - 0.13 mm to 0 mm
Dynamic load ratings (Cr) : 44.50 KN
Static load ratings (Cor) : 70.00 KN
