Rotary table bearings
Table bearings are double-direction axial bearings for screw mounting with a radial guidance bearing. These ready-to-fit, pregreased units are very rigid, have high load-carrying capacity and operate with particularly high accuracy.
ZKLDF series thrust angular contact ball bearings include an integral outer ring, two inner rings and two sets of steel balls and cage assemblies with a contact angle of 60 degrees. The outer and inner rings are equipped with mounting holes for easy mounting and fixing of the bearings by means of connecting bolts. The bearing itself is fixed by connecting bolts to ensure installation, transportation and handling. ZKLDF Thrust Angular Contact Ball Series Rotary Table Bearings have sealing covers on both sides to prevent the ingress of external dirt and impurities and the leakage of internal grease. ZKLDF thrust angular contact ball series rotary table bearings are lubricated with compound barium grease and can also be relubricated through the oil hole in the outer ring. ZKLDF thrust angular contact ball series turntable bearings are designed with two-way 60-degree contact angle and double-row ball structure, so they can bear radial load, two-way axial load and overturning moment; The brass cage design of the special structure makes it have higher strength and lower motorcycle torque; Therefore, this series of bearings is suitable for ultra-high speed, long-term operation and occasions with high requirements for rigidity and precision.
ZKLDF has low friction, high rotation accuracy, high speed limit, etc., can withstand high axial and radial loads and has high tilt stiffness. This type of bearing is particularly suitable for applications in the field of compound loads and precision aspects, and is widely used in machine tool rotary tables, grinding heads and a variety of test equipment.

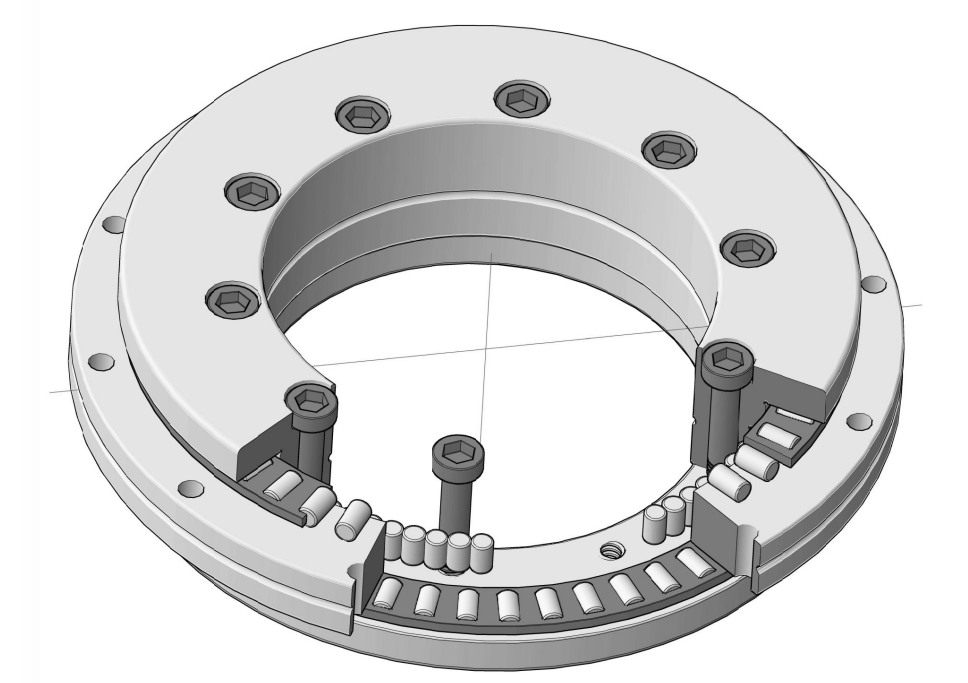

YRT series rotary table bearings
It consists of a thrust centripetal seat ring, a thrust centripetal shaft ring, a thrust washer, two needle roller cage assemblies and a set of centripetal cylindrical rollers. The seat and ring have evenly spaced screw holes for mounting. These bearings have high axial and radial load capacity. High tilting stiffness and extreme precision. Suitable for bearing arrangements in rotary tables, chucks and iron cutter heads, as well as in measurements and experiments. This type of bearing also has high requirements for the matching equipment parts. The tightening torque of the mounting screws should be controlled during installation.
