NK 80/25 Needle roller bearings with machined rings, without an inner ring
NK 80/25 Needle roller bearings with machined rings, without an inner ring detail Specifications:
Material : 52100 Chrome Steel
Series : without an inner ring
Construction : Single Row
Limiting Speed : 5500 rpm
Weight : 0.30 kg

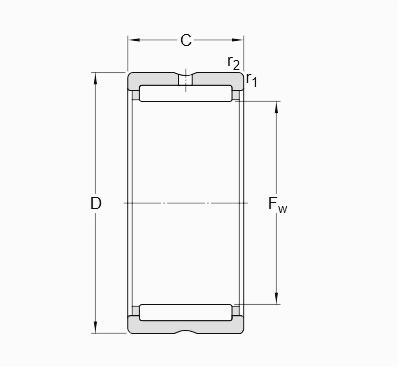

Main Dimensions:
Diameter under rollers (d) : 80 mm
Tolerance of Diameter under rollers : 0.03 mm to 0.049 mm
Outside diameter (D) : 95 mm
Tolerance of Outer diameter : - 0.015 mm to 0 mm
Width (C) : 25 mm
Tolerance of Width : - 0.15 mm to 0 mm
Dynamic load ratings (Cr) : 56.00 KN
Static load ratings (Cor) : 119.00 KN
ABUTMENT DIMENSIONS
Abutment diameter housing (with flanges) (Da) max. : 90 mm
Fillet radius (ra) max. : 1.0 mm
