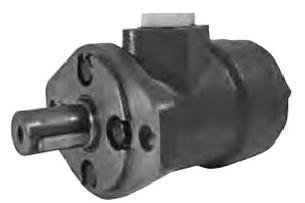

    XLH Series
    Displacement Shaft Mount Ports Maximum Continuous Part Number
    CC CI Speed (rpm) Flow (lpm) Torque (Nm) Pressure (bar)
    53 3.2 1"Keyed 2 Bolt SAE-A   1/2"BSP 721 38 83 124 016-0055-002
    53 3.2 1" Keyed 4 Bolt SAE-A 1/2" BSP 721 38 83 124 016-0236-002
    53 3.2 25mm Keyed 2 Bolt SAE-A 1/2"BSP 721 38 83 124 012-0630-002
    63 3.8 1" Keyed 2 Bolt SAE-A 1/2"BSP 693 45 104 124 016-0056-002
    63 3.8 1" Keyed 4 Bolt SAE-A 1/2"BSP 693 45 104 124 016-0237-002
    63 3.8 25mm Keyed 2 Bolt SAE-A 1/2" BSP 693 45 104 124 012-0631-002
    80 4.9 1"Keyed 2 Bolt SAE-A 1/2"BSP 710 57 130 124 016-0057-002
    80 4.9 1" Keyed 4 Bolt SAE-A 1/2" BSP 710 57 130 124 016-0238-002
    80 4.9 25mm Keyed 2 Bolt SAE-A 1/2" BSP 710 57 130 124 012-0632.002
    100 6.1 1" Keyed 2 Bolt SAE-A 1/2"BSP 568 57 162 124 016-0058-002
    100 6.1 1" Keyed 4 Bolt SAE-A   1/2"BSP 568 57 162 124 016-0239-002
    100 6.1 25mm Keyed 2 Bolt SAE-A 1/2" BSP 568 57 162 124 012-0633-002
    160 9.8 1"Keyed 2 Bolt SAE-A 1/2" BSP 354 57 242 115 016-0060-002
    160 9.8 1"Keyed 4 Bolt SAE-A 1/2" BSP 354 57 242 115 016-0241-002
    160 9.8 25mm Keyed 2 Bolt SAE-A 1/2"BSP 354 57 242 115 012-0634-002
    200 12.2 1" Keyed 2 Bolt SAE-A 1/2"BSP 286 57 287 110 016-0061-002
    200 12.2 1" Keyed 4 Bolt SAE-A 1/2"BSP 286 57 287 110 016-0242-002
    200 12.2 25mm Keyed 2 Bolt SAE-A 1/2" BSP 286 57 287 110 012-0635-002
    245 14.9 1" Keyed 2 Bolt SAE-A 1/2"BSP 234 57 318 100 016-0062-002
    315 19.2 1" Keyed 2 Bolt SAE-A 1/2"BSP 174 57 377 90 016-0063-002
