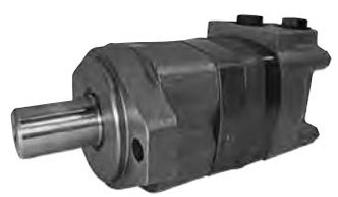

| 2000 Series | |||||||||
| Displacement | Shaft | Mount | Ports | Maximum Continuous | Part Number | ||||
| CC | CI | Speed (rpm) | How pm) | Torque (Nm) | Pressure (bar) | ||||
| 80 | 4.9 | 1"Keyed | 2 Bolt SAE-A | 7/8" UNO | 908 | 75 | 235 | 205 | 104-1001-006 |
| 80 | 4.9 | 1" 6B Spline | 2 Bolt SAE-A | 7/8" UNO | 908 | 75 | 235 | 205 | 104-1015-006 |
| 80 | 4.9 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 908 | 75 | 235 | 205 | 104-1022-006 |
| 80 | 4.9 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 908 | 75 | 235 | 205 | 104-1029-006 |
| 80 | 4.9 | 32mm Keyed | 4 Bolt Diagonal | 1/2"BSP | 908 | 75 | 235 | 205 | 104-1384-006 |
| 100 | 6.2 | 1" Keyed | 2 Bolt SAE-A | 7/8" UNO | 742 | 75 | 295 | 205 | 104-1002-006 |
| 100 | 6.2 | 1"6B Spline | 2 Bolt SAE-A | 7/8" UNO | 742 | 75 | 295 | 205 | 104-1016-006 |
| 100 | 6.2 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 742 | 75 | 295 | 205 | 104-1023-006 |
| 100 | 6.2 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 742 | 75 | 295 | 205 | 104-1030-006 |
| 100 | 6.2 | 32mm Keyed | 4 Bolt Diagonal | 1/2"BSP | 742 | 75 | 295 | 205 | 104-1385-006 |
| 130 | 8 | 1" Keyed | 2 Bolt SAE-A | 7/8" UNO | 576 | 75 | 385 | 205 | 104-1003-006 |
| 130 | 8 | 1" 6B Spline | 2 Bolt SAE-A | 7/8" UNO | 576 | 75 | 385 | 205 | 104-1017006 |
| 130 | 8 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 576 | 75 | 385 | 205 | 104-1024-006 |
| 130 | 8 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 576 | 75 | 585 | 205 | 104-1031-006 |
| 130 | 8 | 32mm Keyed | 4 Bolt Diagonal | 1/2" BSP | 576 | 75 | 585 | 205 | 104-1386-006 |
| 160 | 9.6 | 1"Keyed | 2 Bolt SAE-A | 7/8" UNO | 477 | 75 | 455 | 205 | 104-1004-006 |
| 160 | 9.6 | 1"6B Spline | 2 Bolt SAE-A | 7/8" UNO | 477 | 75 | 455 | 205 | 104-1018-006 |
| 160 | 9.6 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 477 | 75 | 455 | 205 | 104-1025-006 |
| 160 | 9.6 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 477 | 75 | 455 | 205 | 104-1032-006 |
| 160 | 9.6 | 32mm Keyed | 4 Bolt Diagonal | 1/2" BSP | 477 | 75 | 455 | 205 | 104-1387-006 |
| 195 | 11.9 | 1" Keyed | 2 Bolt SAE-A | 7/8" UNO | 385 | 75 | 540 | 205 | 104-1005-006 |
| 195 | 11.9 | 1" 6B Spline | 2 Bolt SAE-A | 7/8" UNO | 385 | 75 | 540 | 205 | 104-1019-006 |
| 195 | 11.9 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 385 | 75 | 540 | 205 | 104-1026-006 |
| 195 | 11.9 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 385 | 75 | 540 | 205 | 104-1033-006 |
| 195 | 11.9 | 32mm Keyed | 4 Bolt Diagonal | 1/2" BSP | 385 | 75 | 540 | 205 | 104-1388-006 |
| 245 | 14.9 | 1" Keyed | 2 Bolt SAE-A | 7/8" UNO | 308 | 75 | 660 | 205 | 104-1006-006 |
| 245 | 14.9 | 1"6B Spline | 2 Bolt SAE-A | 7/8" UNO | 308 | 75 | 660 | 205 | 104-1020-006 |
| 245 | 14.9 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 308 | 75 | 660 | 205 | 104-1027-006 |
| 245 | 14.9 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 308 | 75 | 660 | 205 | 104-1034-006 |
| 245 | 14.9 | 32mm Keyed | 4 Bolt Diagonal | 1/2" BSP | 308 | 75 | 660 | 205 | 104-1389-006 |
| 305 | 18.7 | 1" Keyed | 2 Bolt SAE-A | 7/8" UNO | 246 | 75 | 765 | 205 | 104-1007-006 |
| 305 | 18.7 | 1"6B Spline | 2 Bolt SAE-A | 7/8" UNO | 246 | 75 | 765 | 205 | 104-1021-006 |
| 305 | 18.7 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 246 | 75 | 765 | 205 | 104-1028-006 |
| 305 | 18.7 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8"UNO | 246 | 75 | 765 | 205 | 104-1035-006 |
| 305 | 18.7 | 32mm Keyed | 4 Bolt Diagonal | 1/2"BSP | 246 | 75 | 765 | 205 | 104-1390-006 |
| 395 | 24 | 1" Keyed | 2 Bolt SAE-A | 7/8"UNO | 191 | 75 | 775 | 155 | 104-1143-006 |
| 395 | 24 | 1"6B Spline | 2 Bolt SAE-A | 7/8" UNO | 191 | 75 | 775 | 155 | 104-1227-006 |
| 395 | 24 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 191 | 75 | 775 | 155 | 104-1228-006 |
| 395 | 24 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 191 | 75 | 775 | 155 | 104-1229-006 |
| 395 | 24 | 32mm Keyed | 4 Bolt Diagonal | 1/2"BSP | 191 | 75 | 775 | 155 | 104-1391-006 |
| 490 | 29.8 | 1-1/4" Keyed | 2 Bolt SAE-A | 7/8" UNO | 153 | 75 | 845 | 120 | 104-1420-006 |
| 490 | 29.8 | 1-1/4"14T Spline | 2 Bolt SAE-A | 7/8" UNO | 153 | 75 | 845 | 120 | 104-1422-006 |
| Seals- 2000 Series | ||||||
| Part Number | Description | |||||
| 61258-000 | Buna N Seal Kit for-006 Design (Std. and Whl. Motors) | |||||
| 61259-000 | Buna N Seal Kit for -006 Design (Bearingless Motors Only) | |||||
| 9057-009 | Shaft Seal for-006 Design | |||||
| 5991881-001 | High Pressure Shaft Seal for-006 Design | |||||
| 9121-001 | Dust Seal for -006 Design | |||||
| 14628-002 | Seal Guard (or Slinger Seal) for-006 Design | |||||
