PWTR30-2RS Yoke type track roller bearings Support rollers, with flange rings, with an inner ring
PWTR30-2RS Yoke type track roller bearings Support rollers, with flange rings, with an inner ring detail Specifications:
Material : 52100 Chrome Steel
Construction : Double row
Seal type : 2RS, seals on both sides
Guide Roller Type : Track roller
Limiting Speed : 2600 rpm
Weight : 0.47 kg

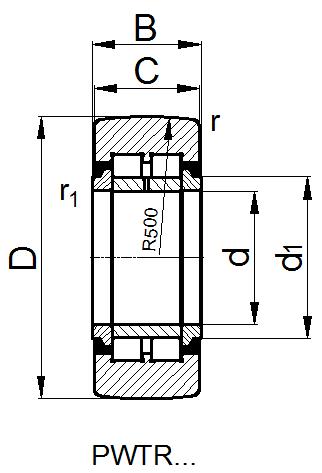

Main Dimensions:
Outer diameter (D) : 62 mm
Bore diameter (d) : 30 mm
Width inner ring (B) : 29 mm
Width outer ring (C) : 28 mm
Outside diameter flange ring (d1) : 38 mm
Chamfer dimension outer ring (r) min. : 1.0 mm
Chamfer dimension flange ring bore (r1) min. : 0.5 mm
Dynamic load ratings (Cr) : 35.00 KN
Static load ratings (Cor) : 39.50 KN
Permissible static load , radial (Fr per) : 25.50 KN
Permissible dynamic load outer ring , radial (F0r per) : 39.50 KN
