    railway bearing is a critical component that supports the wheelsets and allows the wheels to rotate smoothly and freely, while also carrying the weight of the train. These bearings are specialized heavy-duty roller bearings, like tapered roller bearings or cylindrical roller bearings, designed to withstand immense loads, high speeds, and various environmental conditions.

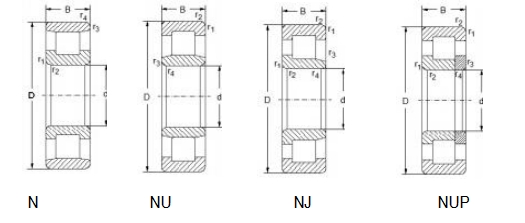

    Cylindrical Roller Bearings
    Designation Dimensions Basic radial load kN Weight kg Risk class
    d D B dyn. stat.
    NU204 EMA6C3L 20 47 14 25.7 22.2 0.132   1B
    NU205 EMA6L 25 52 15 29.3 27.7 0.158   1B
    NU207 EL 35 72 17 50.3 50.2 0.31   1B
    NU207 EMAC4L 35 72 17 50.3 50.2 0.33   1B
    NJ207 EMAC3L 35 72 17 50.3 50.2 0.33   1B
    NJ207 MA6SQ1DCP 35 72 17 37.7 36.8 0.353   1B
    NJ208 EMAC4L 40 80 18 52.6 51.6 0.514   1B
    NJ212 MA6SQ1DCP 60 110 22 95 104 0.962   1B
    NJ219 EMP63TR 95 170 32 210 249 3.24   1B
    NJ220 EP62L 100 180 34 249 306 3.55   1B
    NUP220 EMAP63L 100 180 34 249 306 3.88   1B
    NU221 MASOC3L 105 190 36 210 256 4.5   1B
    NU222 EMP63L 110 200 38 279 343 5.29   1B
    NU222 EMAP63L 110 200 38 279 343 5.69   1B
    NUP222 EMC4TR 110 200 38 279 343 5.57   1B
    NU224 EMC3L 120 215 40 329 412 6.46   1B
    NU224 EMAP63L 120 215 40 329 412 6.43   1B
    NU226 EMAP63L 130 230 40 356 443 7.45   1B
    NU228 EMC3L 140 250 42 372 479 9.1   1B
    NU228 EMAP63SOL 140 250 42 372 479 9.1   1B
    NU230 EMAP63SOL 150 270 45 422 550 11.67   1B
    NUP230 EMP63L 150 270 45 422 550 12.1   1B
    NUP230 EMP63TR 150 270 45 422 550 12.1   1B
    NUP230EMAP63TR 150 270 45 422 550 11.67   1B
    NU232 EMAC3SOL 150 290 48 498 666 14.84   1B
    NF236 MC4L 180 320 52 610 830 19   1B
    NU2218 EMAC3L 90 160 40 242 314 3.58   1B
    NU2219 EMP63TR 95 170 43 273 345 4.29   1B
    NJ2219 EMP63TR 95 170 43 273 345 4.38   1B
    NUP2219EMP63TR 95 170 43 273 345 4.42   1B
    NU2220 EMP63TR 100 180 46 319 418 5.15   1B
    NJ2220 EMAP63L 100 180 46 319 418 5.22   1B
    NJP2220 EMAP63L 100 180 46 319 418 4.77   1B
    NU2222EMAP63SOL 110 200 53 383 516 7.22 1B
    NUP2222 EMAP63L 110 200 53 383 516 7.86 1B
    NU2224 EMAP63L 120 215 58 446 609 9.16 1B
    NU2226 EMAP63L 130 230 64 523 726 11.6 1B
    NU2226 EMC3L 130 230 64 523 726 11.6 1B
    NU305 EMAC3L 25 62 17 41.2 37 0.296 1B
    NJ305 EMAC3L 25 62 17 41.2 37 0.296 1B
    NU306 EMAC3L 30 72 19 50.5 47 0.445 1B
    NU307 EMAC3L 35 80 21 66.7 65.4 0.596 1B
    NU307 EML 35 80 21 66.7 65.4 0.584 1B
    NU308 EMAC3L 40 90 23 79.9 77.5 0.744 1B
    NU308 EMC3L 40 90 23 79.9 77.5 0.745 1B
    NU309 EP63L 45 100 25 97.4 98.3 0.897 1B
    NU309 EMC3L 45 100 25 97.4 98.3 1.022 1B
    NU309 EMAP63L 45 100 25 97.4 98.3 1.035 1B
    NU310 EMAP63L 50 110 27 110 112 1.297 1B
    NU310 EMAP63SQ1 50 110 27 110 113 1.277 1B
    NU312 EMAC3L 60 130 31 150 157 2.121 1B
    NJ312EM6C3SQ1 60 130 46 210 241 3.143 1B
    NU314EC4L 70 150 35 205 222 2.822 1B
    NU314 EMA6P63L 70 150 35 205 222 3.208 1B
    NU314EM6P63L 70 150 35 205 222 3.213 1B
    NU315 EMP63TR 75 160 37 240 263 3.84 1B
    NU315 EMP63SQ1 75 160 37 226 243 3.826 1B
    NUP315 EMP63TR 75 160 37 240 263 3.82 1B
    NU316 EMAP63L 80 170 39 253 277 4.27 1B
    NU317 EMAC3L 85 180 41 288 325 5.8 1B
    NUP317 EMAP63L 85 180 41 288 325 1B
    NU318 EMA P64L 90 190 43 311 349 6.44 1B
    NU318 EMA P64L 90 190 43 311 349 6.44 1B
    NJ318 EMC3L 90 190 43 311 349 6.14 1B
    NJ318 EMAC3L 90 190 43 311 349 5.4 1B
    NJ318 EMC4SQ1+HJ318ESQ1 90 190 43 311 349 6.913 1B
    NU320 EMP63L 100 215 47 381 427 8.53 1B
    NU320 EMAP63L 100 215 47 381 427 8.6 1B
    NJ320 EMC3L 100 215 47 381 427 8.6 1B
    NJ320 EMAC3L 100 215 47 381 427 8.6 1B
    NUP320 EMP63TR 100 215 47 381 427 8.23 1B
    NU322EC3L 110 240 50 443 513 11.03 1B
    NU322 EMAP63L 110 240 50 443 513 11.9 1B
    NU322 EMP63L 110 240 50 443 513 11.66 1B
    NU322 EMAP63S0L 110 240 50 443 513 11.03 1B
    NJ322 EMC4SQ1+HJ322ESQ1 110 240 50 416 471 13.192 1B
    NJ324 EMC3L 120 260 55 543 644 14.99 1B
    NU324 EMP63L 120 260 55 549 644 14.84 1B
    NU326 EM6C3L 130 280 58 607 722 18.9 1B
    NU326 EMAP63L 130 280 58 607 722 18.65 1B
    NU1020 MAC3L 100 150 24 89 120 1.37 1B
    NU1026 MC4L 130 200 33 163 221 3.76 1B
    NU1026 MAC3L 130 200 33 163 221 3.76 1B
    NU1026 MAC4SOL 130 200 33 163 221 3.76 1B
    NU1032 MAP63L 160 240 38 230 328 6.04 1B
    NU1034 MC3L 170 260 42 277 400 8.74 1B
    NU¹036  MC3L 180 280 46 336 479 10.52 1B
    NU1036 MC3TR 180 280 46 336 479 10.52 1B
    NU¹040  MP63L 200 310 51 395 590 14.1 1B
    NU1044 MAP63L 220 340 56 650 1047 18.7 1B
    NU¹044  MAP63SOL 220 340 56 650 1047 18.5 1B
    NJ2314 MC3SQ1 70 150 51 223 263 4.535 1B
    NU2316 EMAP63L 80 170 39 353 425 6.6 1B
    NU2317 EMA6P63L 85 180 60 368 446 7.6 1B
    NU2218 EMAC4SQ1 90 160 40 242 314 3.62 1B
    NUP2218 EMAC4SQ1 90 160 40 242 314 3.71 1B
    NU2319 MAP63L 95 200 67 390 491 9.3 1B
    NU2322 EMAP63L 110 240 80 667 868 19.27 1B
    NU2322 EMASOP63L 110 240 80 667 868 19.27 1B
    NU2948 MAP63L 240 320 48 363 689 11.2 1B
    NU407 MAP63L 35 100 25 75.7 69.4 1.17 1B
    NU410 MAC3L 50 130 31 139 136 2.25 1B
    NU410 MASOC3L 50 130 31 139 136 2.25 1B
    NU414 MAP63L 70 180 42 240 253 5.9 1B
    NU416 MAP63L 80 200 48 316 339 7.5 1B
    NU424 MP64TR 120 310 72 677 776 29.92 1B
    NU424 MC4SQ1 120 310 72 677 776 30.918 1B
    487632 MASC4 160 270 168 1000 1760 39.21 1B
