RNA6904 Needle roller bearings with machined rings, without an inner ring
RNA6904 Needle roller bearings with machined rings, without an inner ring detail Specifications:
Material : 52100 Chrome Steel
Type : single row
Limiting Speed : 17000 rpm
Weight : 0.1 kg

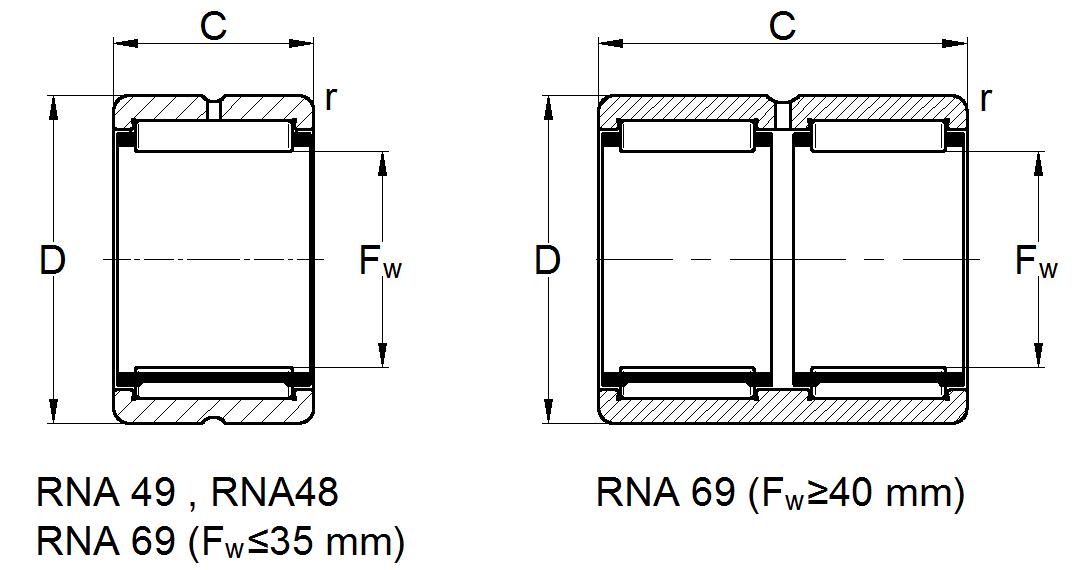

Main Dimensions:
Diameter under rollers (Fw) : 25 mm
Outer diameter (D) : 37 mm
Width (C) : 30 mm
Chamfer dimension outer ring (r) min. : 0.3 mm
Dynamic load ratings (Cr) : 40.50 KN
Static load ratings (Cor) : 51.00 KN
ABUTMENT DIMENSIONS
Abutment diameter housing (with flanges) (Da) max. : 35.00 mm
Fillet radius (ra) max. : 0.3 mm
