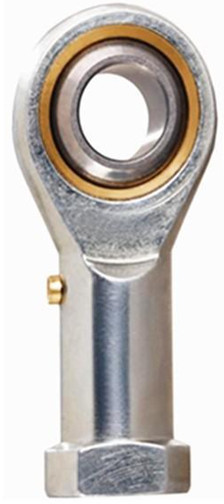

    Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing. They are used primarily on the ends of hydraulic or pneumatic pistons to join the cylinder to an associated component. The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings.
    ROD ENDS:PHS

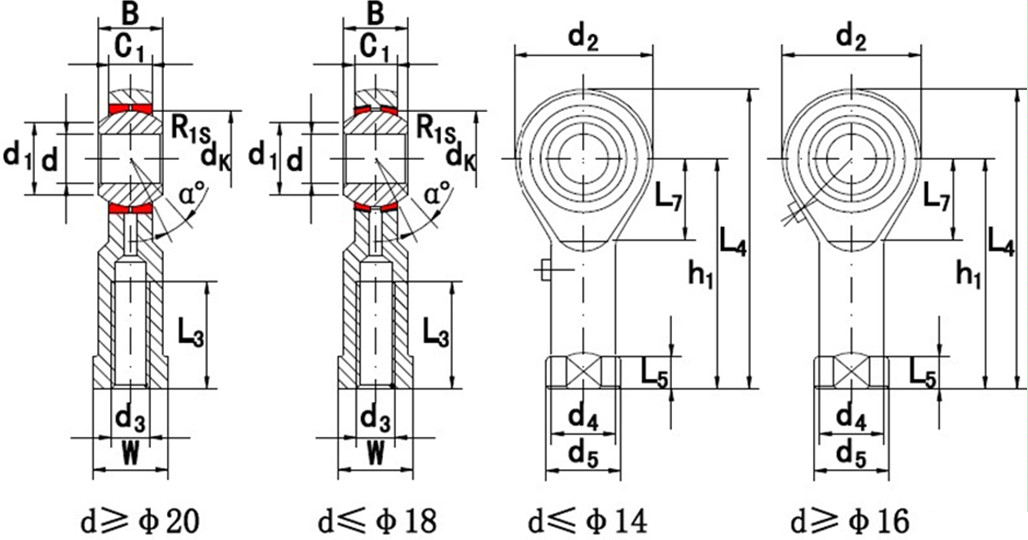

    Part No. Main dimensions (mm) Basic load rating
    d d3 6H B C1 L3 min W d2 d1 h1 L4 L5 d4 d5 dk a ≈ Dynamic Static
    C(KN) Co(KN)
    PHS4 4 M4x0.7 7 5.25 8 8 14 6.5 24 31 4 8 9.5 9.525 13 3 5
    PHS5 5 M5x0.8 8 6 10 9 16 7.7 27 35 4 8.5 11 11.11 13 3.25 5.7
    PHS6 6 M6x1.0 9 6.75 12 11 18 8.96 30 39 5 10 13 12.7 13 4.3 7.2
    PHS8 8 M8x1.25 12 9 16 14 22 10.4 36 47 5 12.5 16 15.875 14 7.2 11.6
    PHS10 10 M10x1.5 14 10.5 20 17 26 12.9 43 56 6.5 15 19 19.05 13 10 14.5
    PHS10-1 10 M10x1.25 14 10.5 20 17 26 12.9 43 56 6.5 15 19 19.05 13 10 14.5
    PHS12 12 M12x1.75 16 12 22 19 30 15.4 50 65 6.5 17.5 22 22.225 13 13.4 17
    PHS12-1 12 M12x1.25 16 12 22 19 30 15.4 50 65 6.5 17.5 22 22.225 13 13.4 17
    PHS14 14 M14x2.0 19 13.5 25 22 34 16.9 57 74 8 20 25 25.4 16 17 24
    PHS14-1 14 M14x1.5 19 13.5 25 22 34 16.9 57 74 8 20 25 25.4 16 17 24
    PHS16 16 M16x2.0 21 15 28 22 40 19.4 64 84 8 22 27 28.575 15 21.6 28.5
    PHS16-1 16 M16x1.5 21 15 28 22 40 19.4 64 84 8 22 27 28.575 15 21.6 28.5
    PHS18 18 M18x1.5 23 16.5 32 27 44 21.9 71 93 10 25 31 31.75 15 26 42.5
    PHS20 20 M20x1.5 25 18 33 30 50 24.4 77 102 10 27.5 34 34.925 14 31.5 42.5
    PHS22 22 M22x1.5 28 20 37 32 54 25.8 84 111 12 30 38 38.1 15 38 57
    PHS25 25 M24x2.0 31 22 42 36 60 29.6 94 124 12 33.5 42 42.86 15 47.5 68
    PHS28 28 M27x2.0 35 24 48 41 66 32.3 103 136 14 37 46 47.63 15 58 75
    PHS30 30 M30x2.0 37 25 51 41 70 34.8 110 145 15 40 50 50.8 17 64 88
    PHS30-1 30 M27x2.0 37 25 51 41 70 34.8 110 145 15 40 50 50.8 17 64 88
