    RSTO 8 – TV Support roller (yoke-type track roller bearing) without flange rings and inner ring

    Short Description:

    Support rollers (yoke-type track rollers) are based on a single row needle roller bearing without an inner ring, intended for applications where hardened and ground raceways can be provided on the pin or shaft. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. The outer ring and the needle roller and cage assembly can be mounted separately.


    Product Detail

    Product Tags

    RSTO 8 - TV Support roller (yoke-type track roller bearing) without flange rings and inner ring detail Specifications:

    Material : 52100 Chrome Steel

    Construction : Single row

    Type : Open type

    Roller Type : Track

    Limiting Speed : 7000rpm

    Weight : 0.021 kg

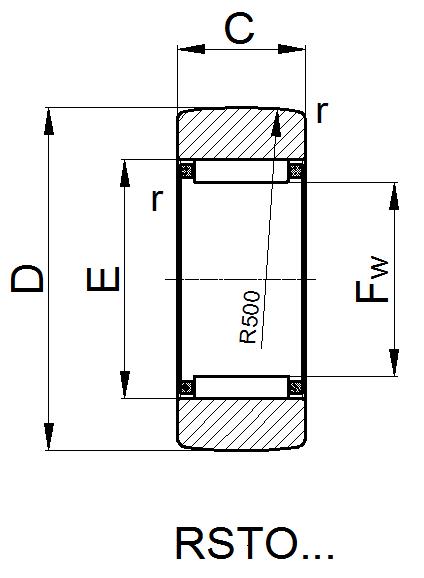

    Main Dimensions:

    Outer diameter (D) : 24 mm

    Width (C) : 9.8 mm

    Diameter under rollers (Fw) : 12 mm

    Raceway diameter outer ring (E) : 15 mm

    Chamfer dimension (r) min. : 0.3 mm

    Dynamic load ratings (Cr) : 4.20 KN

    Static load ratings (Cor) : 5.50 KN

    RSTO drawing
