    Spherical plain bearings are made up of an inner ring and an outer ring with sphered outside and inside surfaces.Rod end bearings are precision mechanical articulating joints, that consist of an eye-shaped head where a spherical plain bearing is assembled.

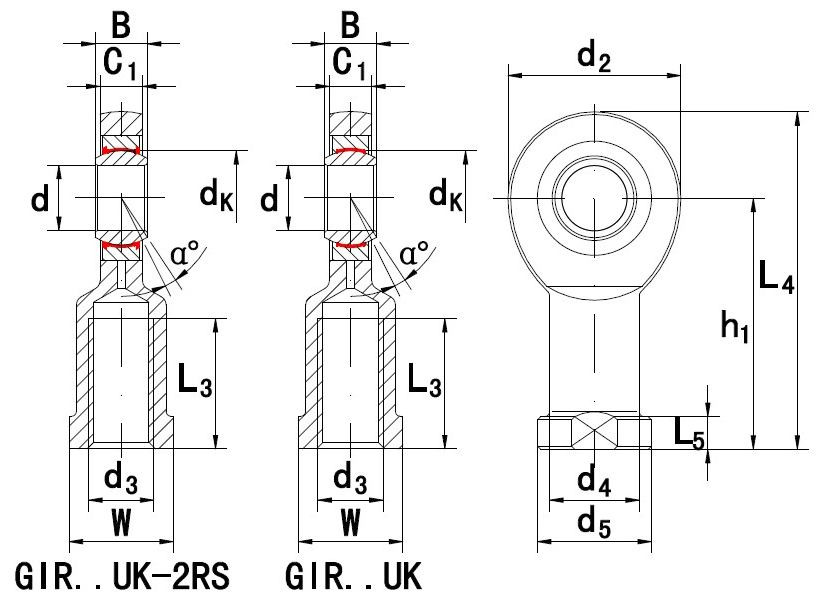

    ROD ENDS:GIR..UK
    ITEM Dimensions mm
    d d3 B C1 L3 W d2 h1 L4 L5 d4 d5 dk a
    6H min ≈
    GIR6UK 6 M6x1.0 6 4.4 11 11 21 30 40.5 5 10 13 10 13
    GIR8UK 8 M8x1.25 8 6 15 14 24 36 48 5 12.5 16 13 15
    GIR10UK 10 M10x1.5 9 7 20 17 29 43 57.5 6.5 15 19 16 12
    GIR12UK 12 M12x1.75 10 8 23 19 34 50 67 6.5 17.5 22 18 11
    GIR15UK 15 M14x2.0 12 10 30 22 40 61 81 8 21 26 22 8
    GIR17UK(2RS) 17 M16x2.0 14 11 34 27 46 67 90 10 24 30 25 10
    GIR20UK(2RS) 20 M20x1.5 16 13 40 32 53 77 103.5 10 27.5 35 29 9
    GIR25UK(2RS) 25 M24x2.0 20 17 48 36 64 94 126 12 33.5 42 35.5 7
    GIR30UK(2RS) 30 M30x2.0 22 19 56 41 73 110 146.5 15 40 50 40.7 6
    GIR35UK2RS 35 M36x3.0 25 21 60 50 82 125 166 15 47 58 47 6
    GIR40UK2RS 40 M39x3.0 28 23 65 55 92 142 188 18 52 65 53 7
    GIR40-1UK2RS 40 M42x3.0 28 23 65 55 92 142 188 18 52 65 53 7
    GIR45UK2RS 45 M42x3.0 32 27 65 60 102 145 196 20 58 70 60 7
    GIR45-1UK2RS 45 M45x3.0 32 27 65 60 102 145 196 20 58 70 60 7
    GIR50UK2RS 50 M45x3.0 35 30 68 65 112 160 216 20 62 75 66 6
    GIR50-1UK2RS 50 M52x3.0 35 30 68 65 112 160 216 20 62 75 66 6
    GIR60UK2RS 60 M52x3.0 44 38 70 75 135 175 242.5 20 70 88 80 6
    GIR60-1UK2RS 60 M60x4.0 44 38 70 75 135 175 242.5 20 70 88 80 6
    GIR70UK2RS 70 M56x4.0 49 42 80 85 160 200 280 20 80 98 92 6
    GIR70-1UK2RS 70 M72x4.0 49 42 80 85 160 200 280 20 80 98 92 6
    GIR80UK2RS 80 M64x4.0 55 47 85 100 180 230 320 25 95 110 105 6
    GIR80-1UK2RS 80 M80x4.0 55 47 85 100 180 230 320 25 95 110 105 6
