    Spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
    SPHERICAL PLAIN BEARINGS:GEZ..ES

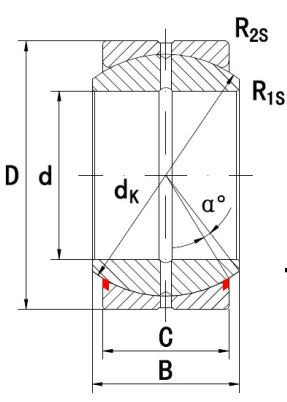

    ITEM SIZE(mm)
    d D B C dk r1 min r2 min α ≈
    GEZ12ES 12.7 22.225 11.1 9.525 18 0.3 0.6 6
    GEZ15ES 15.875 26.988 13.894 11.913 23 0.3 0.6 6
    GEZ19ES 19.05 31.75 16.662 14.275 27.5 0.3 0.6 6
    GEZ22ES 22.225 36.513 19.431 16.662 32 0.3 0.6 6
    GEZ25ES 25.4 41.275 22.225 19.05 36.5 0.3 0.6 6
    GEZ25ES2RS 25.4 41.275 22.225 19.05 36.5 0.3 0.6 6
    GEZ31ES 31.75 50.8 27.762 23.8 45.5 0.6 0.6 6
    GEZ31ES2RS 31.75 50.8 27.762 23.8 45.5 0.6 0.6 6
    GEZ34ES 34.925 55.563 30.15 26.187 49 0.6 1 6
    GEZ34ES2RS 34.925 55.563 30.15 26.187 49 0.6 1 6
    GEZ38ES 38.1 61.913 33.325 28.575 54.7 0.6 1 6
    GEZ38ES2RS 38.1 61.913 33.325 28.575 54.7 0.6 1 6
    GEZ44ES 44.45 71.438 38.887 33.325 63.9 0.6 1 6
    GEZ44ES2RS 44.45 71.438 38.887 33.325 63.9 0.6 1 6
    GEZ50ES 50.8 80.963 44.45 38.1 73 0.6 1 6
    GEZ50ES2RS 50.8 80.963 44.45 38.1 73 0.6 1 6
    GEZ57ES 57.15 90.488 55.013 42.85 82 0.6 1 6
    GEZ57ES2RS 57.15 90.488 55.013 42.85 82 0.6 1 6
    GEZ63ES 63.5 100.013 55.55 47.625 92 0.6 1 6
    GEZ63ES2RS 63.5 100.013 55.55 47.625 92 0.6 1 6
    GEZ69ES 69.85 111.125 61.112 52.375 100 1 1 6
    GEZ69ES2RS 69.85 111.125 61.112 52.375 100 1 1 6
    GEZ76ES 76.2 120.65 66.675 57.15 109.5 1 1 6
    GEZ76ES2RS 76.2 120.65 66.675 57.15 109.5 1 1 6
    GEZ82ES 82.55 130.175 72.238 61.9 120 1 1 6
    GEZ82ES2RS 82.55 130.175 72.238 61.9 120 1 1 6
    GEZ88ES 88.9 139.7 77.775 66.675 130 1 1 6
    GEZ88ES2RS 88.9 139.7 77.775 66.675 130 1 1 6
    GEZ95ES 95.25 149.225 83.337 71.425 137 1 1 6
    GEZ95ES2RS 95.25 149.225 83.337 71.425 137 1 1 6
    GEZ101ES 101.6 158.75 88.9 76.2 146 1 1 6
    GEZ101ES2RS 101.6 158.75 88.9 76.2 146 1 1 6
    GEZ107ES 107.95 168.275 94.463 80.95 154.9 1 1 6
    GEZ107ES2RS 107.95 168.275 94.463 80.95 154.9 1 1 6
    GEZ114ES 114.3 177.8 100.013 85.725 164.5 1 1 6
    GEZ114ES2RS 114.3 177.8 100.013 85.725 164.5 1 1 6
    GEZ120ES 120.65 187.325 105.562 90.475 173.5 1 1 6
    GEZ120ES2RS 120.65 187.325 105.562 90.475 173.5 1 1 6
    GEZ127ES 127 196.85 111.125 95.25 183 1 1 6
    GEZ127ES2RS 127 196.85 111.125 95.25 183 1 1 6
    GEZ152ES 152.4 222.25 120.65 104.775 207 1 1 5
    GEZ152ES2RS 152.4 222.25 120.65 104.775 207 1 1 5
