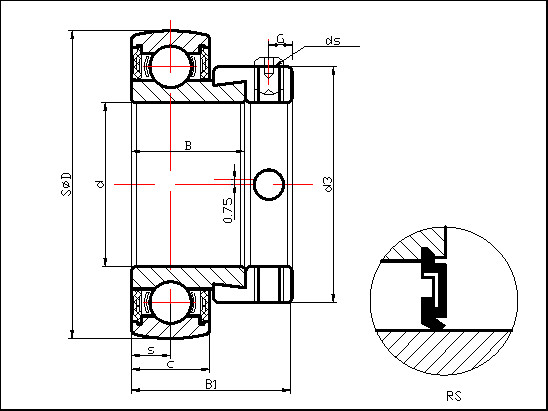

Stainless steel insert bearing:SS-U SERIES

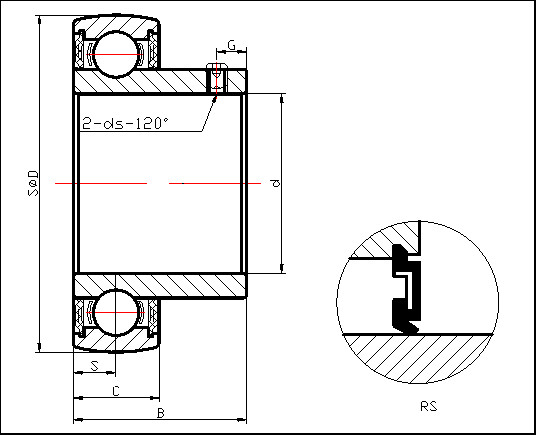

Stainless steel insert bearing:SS-K SERIES
| Bearing | Dimensions (mm) | Dynamic load | Static load | |||||||||
| NO. | rarings | ratings | ||||||||||
| d | D | B | C | S | B1 | d3 | B5 | G | ds | (KN) | (KN) | |
| SS-U 000 | 10 | 26 | 11 | 8 | 4 | 17.5 | 17 | 8.5 | 3.5 | M4×0.7 | 4.6 | 1.8 |
| SS-U 001 | 12 | 28 | 11 | 8 | 4 | 17.5 | 19 | 8.5 | 3.5 | M4×0.7 | 5.1 | 2.2 |
| SS-U 002 | 15 | 32 | 12 | 9 | 4.5 | 18.5 | 22 | 8.5 | 3.5 | M4×0.7 | 5.6 | 2.8 |
| SS-U 003 | 17 | 35 | 13.5 | 10 | 5 | 20.5 | 25 | 9.5 | 3.5 | M4×0.7 | 6 | 3.2 |
| SS-U 004 | 20 | 42 | 16.5 | 12 | 6 | 24.5 | 30 | 11 | 5 | M5×0.8 | 9.35 | 4.8 |
| SS-U 005 | 25 | 47 | 17.5 | 12 | 6 | 25.5 | 36 | 12 | 5 | M5×0.8 | 10.1 | 5.6 |
| SS-U 006 | 30 | 55 | 18.5 | 13 | 6.5 | 26.5 | 42 | 12 | 5 | M5×0.8 | 13.2 | 8 |
| Bearing | Dimensions (mm) | Dynamic load | Static load | ||||||
| NO. | rarings | ratings | |||||||
| d | D | B | C | S | G | ds | (KN) | (KN) | |
| SS-K 000 | 10 | 26 | 14 | 8 | 4 | 3 | M3*0.35 | 4.6 | 2 |
| SS-K 001 | 12 | 28 | 14.5 | 8 | 4 | 3 | M3*0.35 | 5.1 | 2.4 |
| SS-K 002 | 15 | 32 | 16.5 | 9 | 4.5 | 3.5 | M4×0.5 | 5.6 | 2.8 |
| SS-K 003 | 17 | 35 | 17.5 | 10 | 5 | 3.5 | M4×0.5 | 6 | 3.3 |
| SS-K 004 | 20 | 42 | 21 | 12 | 6 | 4 | M5×0.5 | 9.35 | 5.1 |
| SS-K 005 | 25 | 47 | 22.5 | 12 | 6 | 4.5 | M5×0.5 | 10.1 | 5.8 |
| SS-K 006 | 30 | 55 | 24.6 | 13 | 6.5 | 5 | M5×0.5 | 13.2 | 8.2 |
