Stainless steel pillow block bearing:SS-UP000
| Material of Housing/Bearing: AISI304/AISI420 Food Grease FM222 | |||||||||||

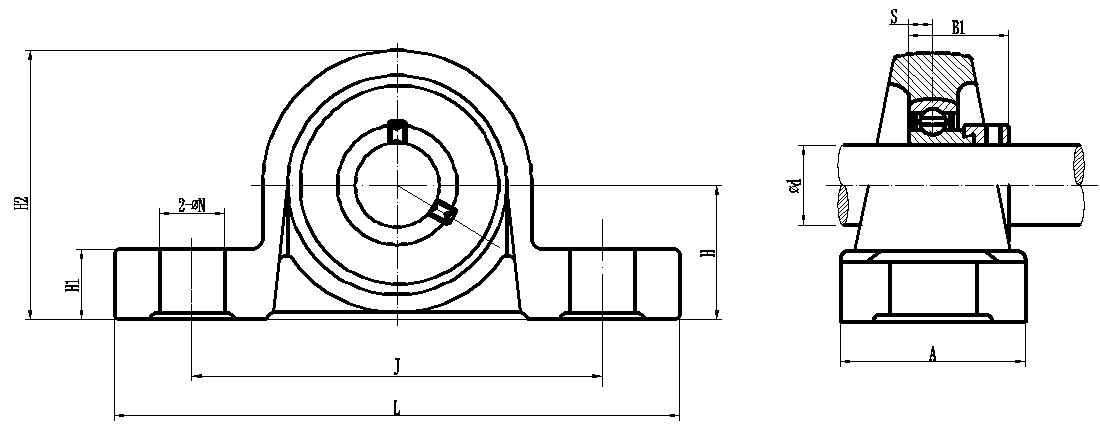

| Bearing Unit | Bore Dia | Dimensions ( mm ) | Bolt Used | ||||||||
| NO. | d | H | L | J | A | N | H1 | H2 | B1 | S | |
| mm | |||||||||||
| SS-UP000 | 10 | 18 | 67 | 53 | 16 | 7 | 6 | 35 | 17.5 | 4 | M6 |
| SS-UP001 | 12 | 19 | 71 | 56 | 16 | 7 | 6 | 38 | 17.5 | 4 | M6 |
| SS-UP002 | 15 | 22 | 80 | 63 | 16 | 7 | 7 | 43 | 18.5 | 4.5 | M6 |
| SS-UP003 | 17 | 24 | 85 | 67 | 18 | 7 | 7 | 47 | 20.5 | 5 | M6 |
| SS-UP004 | 20 | 28 | 100 | 80 | 20 | 10 | 9 | 55 | 24.5 | 6 | M8 |
| SS-UP005 | 25 | 32 | 112 | 90 | 20 | 10 | 10 | 62 | 25.5 | 6 | M8 |
| SS-UP006 | 30 | 36 | 132 | 106 | 26 | 13 | 11 | 70 | 26.5 | 6.5 | M10 |
| SS-UP007 | 35 | 40 | 150 | 118 | 26 | 13 | 13 | 80 | 29.5 | 7 | M10 |
