Yoke Type Track Rollers: RNA

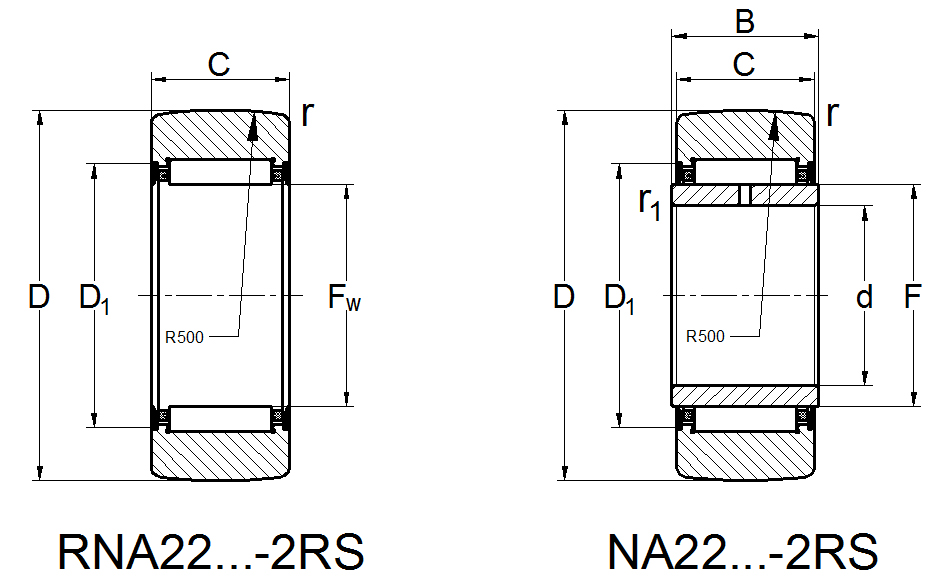

| Yoke type track rollers without axial guidance sealed | |||||||||||
| Designation | Dimensions(mm) | Basic load ratings | |||||||||
| without inner ring Designation | with inner ring Designation | d | D | C | B | Fw | D1 min. | r min. | r1 min. | dyn. Cr KN | stat. Cor KN |
| RNA22/6-2RS | NA22/6-2RS | 6 | 19 | 11.8 | 12 | 10 | 16 | 0.3 | 0.3 | 3.9 | 3.65 |
| RNA22/8-2RS | NA22/8-2RS | 8 | 24 | 11.8 | 12 | 12 | 18 | 0.3 | 0.3 | 4.8 | 4.8 |
| RNA2200-2RS | NA2200-2RS | 10 | 30 | 13.8 | 14 | 14 | 20 | 0.6 | 0.3 | 7 600 | 8 |
| RNA2201-2RS | NA2201-2RS | 12 | 32 | 13.8 | 14 | 16 | 22 | 0.6 | 0.3 | 7.5 | 9 |
| RNA2202-2RS | NA2202-2RS | 15 | 35 | 13.8 | 14 | 20 | 26 | 0.6 | 0.3 | 7.6 | 9.5 |
| RNA2203-2RS | NA2203-2RS | 17 | 40 | 15.8 | 16 | 22 | 28 | 1 | 0.3 | 9.9 | 13.7 |
| RNA2204-2RS | NA2204-2RS | 20 | 47 | 17.8 | 18 | 25 | 33 | 1 | 0.3 | 15.2 | 18.3 |
| RNA2205-2RS | NA2205-2RS | 25 | 52 | 17.8 | 18 | 30 | 38 | 1 | 0.3 | 15.7 | 20 |
| RNA2206-2RS | NA2206-2RS | 30 | 62 | 19.8 | 20 | 35 | 43 | 1 | 0.3 | 18.4 | 25.5 |
| RNA2207-2RS | NA2207-2RS | 35 | 72 | 22.7 | 23 | 42 | 50 | 1.1 | 0.6 | 23 | 35.5 |
| RNA2208-2RS | NA2208-2RS | 40 | 80 | 22.7 | 23 | 48 | 57 | 1.1 | 0.6 | 27.5 | 40.5 |
| RNA2209-2RS | NA2209-2RS | 45 | 85 | 22.7 | 23 | 52 | 62 | 1.1 | 0.6 | 28.5 | 43 |
| RNA2210-2RS | NA2210-2RS | 50 | 90 | 22.7 | 23 | 58 | 68 | 1.1 | 0.6 | 28 | 42.5 |
