    Products

    Yoke type roller bearing track rollers are ready-to-fit needle or cylindrical roller bearings of single or double row design.Yoke type track rollers are complete units consisting of an outer ring,a needle roller and cage assembly or a full complement needle or cylindrical roller set, with or without an inner ring.Yoke type roller bearing track rollers are available with or without an inner ring. They are produced with or without axial guidance of the outer ring.

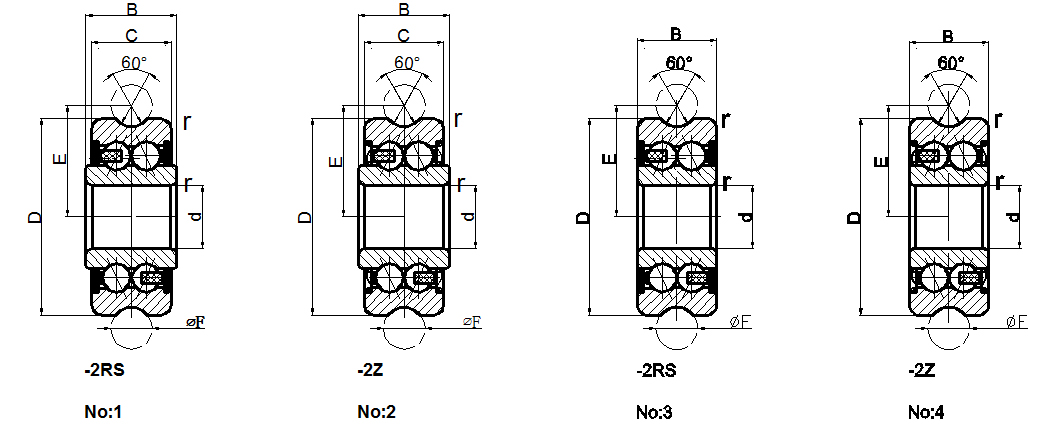

    Yoke Type Track Rollers: LFR
    Bearing No Size（mm) Basic load rating(KN)
    dyn stat Drawing
    d D B C r min E F Cr Cor No
    LFR50/5-4 2RS 5 16 8 7 0.3 9 4 1.2 0.86 1
    LFR50/5-4 2Z 5 16 8 7 0.3 9 4 1.2 0.86 2
    LFR50/5-6 2RS 5 17 8 7 0.3 10.5 6 1.27 0.82 1
    LFR50/5-6 2Z 5 17 8 7 0.3 10.5 6 1.27 0.82 2
    LFR50/8-6 2RS 8 24 11 11 0.3 14 6 3.67 2.28 3
    LFR50/8-6 2Z 8 24 11 11 0.3 14 6 3.67 2.28 4
    LFR5201-10 2RS 12 35 15.9 15.9 0.6 20.65 10 8.5 5.1 3
    LFR5201-10 2Z 12 35 15.9 15.9 0.6 20.65 10 8.5 5.1 4
    LFR5201-12 2RS 12 35 15.9 15.9 0.6 21.75 12 8.5 5.1 3
    LFR5201-12 2Z 12 35 15.9 15.9 0.6 21.75 12 8.5 5.1 4
    LFR5204-16 2RS 20 52 22.6 20.6 0.6 31.5 16 16.8 9.5 1
    LFR5204-16 2Z 20 52 22.6 20.6 0.6 31.5 16 16.8 9.5 2
    LFR5206-20 2RS 25 72 25.8 23.8 1 41 20 29.5 16.6 1
    LFR5206-20 2Z 25 72 25.8 23.8 1 41 20 29.5 16.6 2
    LFR5206-25 2RS 25 72 25.8 23.8 1 43.5 25 29.2 16.4 1
    LFR5206-25 2Z 25 72 25.8 23.8 1 43.5 25 29.2 16.4 2
    LFR5207-30 2RS 30 80 29 27 1 51 30 38 20.8 1
    LFR5207-30 2Z 30 80 29 27 1 51 30 38 20.8 2
    LFR5208-40 2RS 40 98 38 36 1 62.5 40 54.8 29 1
    LFR5208-40 2Z 40 98 38 36 1 62.5 40 54.8 29 2
    LFR5301-10 2RS 12 42 19 19 0.6 24 10 13 7.7 3
    LFR5301-10 2Z 12 42 19 19 0.6 24 10 13 7.7 4
    LFR5302-10 2RS 15 47 19 19 0.6 26.65 10 16.2 9.2 3
    LFR5302-10 2Z 15 47 19 19 0.6 26.65 10 16.2 9.2 4
