    Spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
    SPHERICAL PLAIN BEARINGS:GE…ES
    ITEM SIZE(mm)

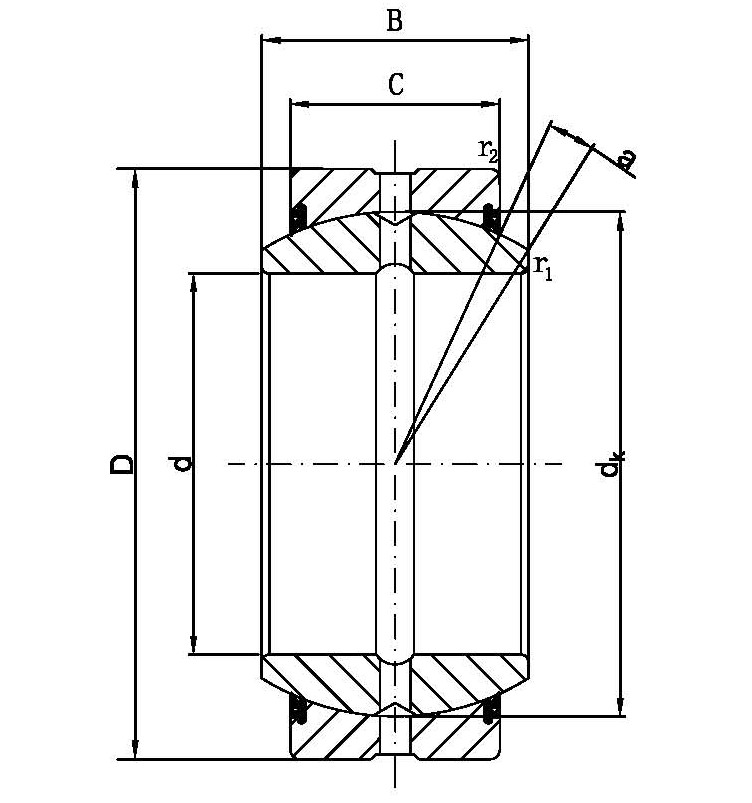

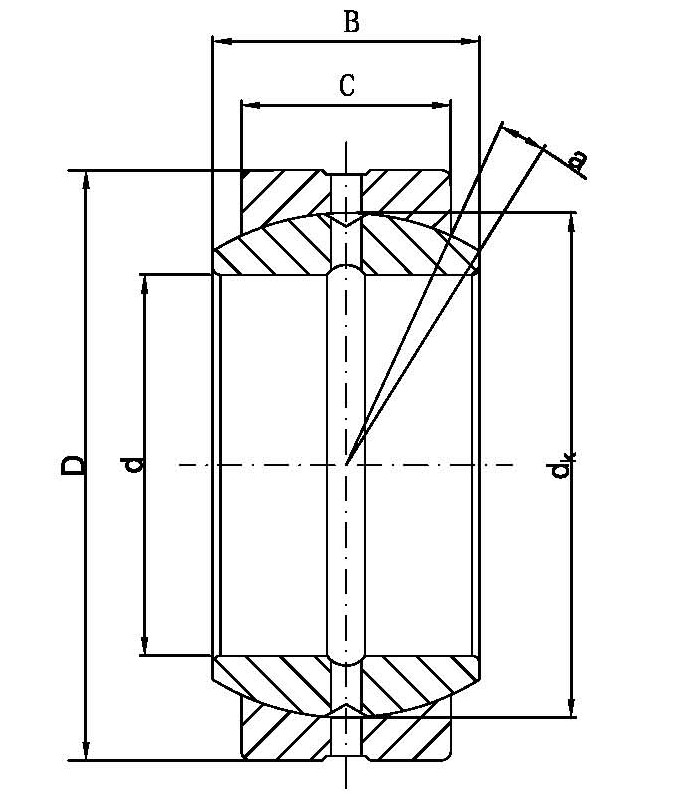

    d D B C dk r1 min r2 min α ≈
    GE5E 5 14 6 4 10 0.3 0.3 13
    GE6E 6 14 6 4 10 0.3 0.3 13
    GE8E 8 16 8 5 13 0.3 0.3 15
    GE10E 10 19 9 6 16 0.3 0.3 12
    GE12E 12 22 10 7 18 0.3 0.3 11
    GE15ES 15 26 12 9 22 0.3 0.3 8
    GE15ES2RS 15 26 12 9 22 0.3 0.3 8
    GE16ES 16 30 14 10 25 0.3 0.3 10
    GE16ES2RS 16 30 14 10 25 0.3 0.3 10
    GE17ES 17 30 14 10 25 0.3 0.3 10
    GE17ES2RS 17 30 14 10 25 0.3 0.3 10
    GE20ES 20 35 16 12 29 0.3 0.3 9
    GE20ES2RS 20 35 16 12 29 0.3 0.3 9
    GE25ES 25 42 20 16 35.5 0.6 0.6 7
    GE25ES2RS 25 42 20 16 35.5 0.6 0.6 7
    GE30ES 30 47 22 18 40.7 0.6 0.6 6
    GE30ES2RS 30 47 22 18 40.7 0.6 0.6 6
    GE35ES 35 55 25 20 47 0.6 1 6
    GE35ES2RS 35 55 25 20 47 0.6 1 6
    GE40ES 40 62 28 22 53 0.6 1 7
    GE40ES2RS 40 62 28 22 53 0.6 1 7
    GE45ES 45 68 32 25 60 0.6 1 7
    GE45ES2RS 45 68 32 25 60 0.6 1 7
    GE50ES 50 75 35 28 66 0.6 1 6
    GE50ES2RS 50 75 35 28 66 0.6 1 6
    GE60ES 60 90 44 36 80 1 1 6
    GE60ES2RS 60 90 44 36 80 1 1 6
    GE70ES 70 105 49 40 92 1 1 6
    GE70ES2RS 70 105 49 40 92 1 1 6
    GE80ES 80 120 55 45 105 1 1 6
    GE80ES2RS 80 120 55 45 105 1 1 6
    GE90ES 90 130 60 50 115 1 1 5
    GE90ES2RS 90 130 60 50 115 1 1 5
    GE100ES 100 150 70 55 130 1 1 7
    GE100ES2RS 100 150 70 55 130 1 1 7
    GE110ES 110 160 70 55 140 1 1 6
    GE110ES2RS 110 160 70 55 140 1 1 6
    GE120ES 120 180 85 70 160 1 1 6
    GE120ES2RS 120 180 85 70 160 1 1 6
    GE140ES 140 210 90 70 180 1 1 7
    GE140ES2RS 140 210 90 70 180 1 1 7
    GE160ES 160 230 105 80 200 1 1 8
    GE160ES2RS 160 230 105 80 200 1 1 8
    GE180ES 180 260 105 80 225 1.1 1.1 6
    GE180ES2RS 180 260 105 80 225 1.1 1.1 6
    GE200ES 200 290 130 100 250 1.1 1.1 7
    GE200ES2RS 200 290 130 100 250 1.1 1.1 7
    GE220ES 220 320 135 100 275 1.1 1.1 8
    GE220ES2RS 220 320 135 100 275 1.1 1.1 8
    GE240ES 240 340 140 100 300 1.1 1.1 8
    GE240ES2RS 240 340 140 100 300 1.1 1.1 8
    GE260ES 260 370 150 110 325 1.1 1.1 7
    GE260ES2RS 260 370 150 110 325 1.1 1.1 7
    GE280ES 280 400 155 120 350 1.1 1.1 6
    GE280ES2RS 280 400 155 120 350 1.1 1.1 6
    GE300ES 300 430 165 120 375 1.1 1.1 7
    GE300ES2RS 300 430 165 120 375 1.1 1.1 7
