UCHA208 Pillow block ball bearing units with 40 mm bore detail Specifications:

Housing material : gray cast iron or ductile iron

Bearing Material : 52100 Chrome Steel

Bearing type : ball bearing

Bearing No. : UC 208

Housing No. : HA 208

Housing Weight : 1.36 kg

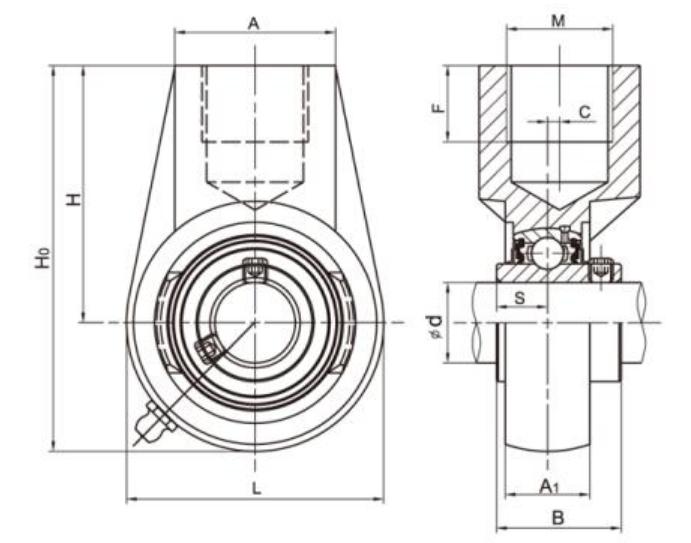

Main Dimensions:

Shaft Diameter d : 40 mm

Housing Outside Diameter (L) : 100 mm

Housing Overall Length (Ho) : 123 mm

Housing Outside Diameter (H) : 73 mm

A : 40 mm

Mounting Thread M(in) : G3/4

F : 19 mm

C : 2

A1 : 33 mm

Length Thru Bore (B) : 49.2 mm

S : 19 mm
