UCPA201 Pillow block ball bearing units with 12 mm bore detail Specifications:

Housing material : gray cast iron or ductile iron

Bearing Material : 52100 Chrome Steel

Bearing type : ball bearing

Bearing No. : UC201

Housing No. : PA201

Housing Weight : 0.62 kg

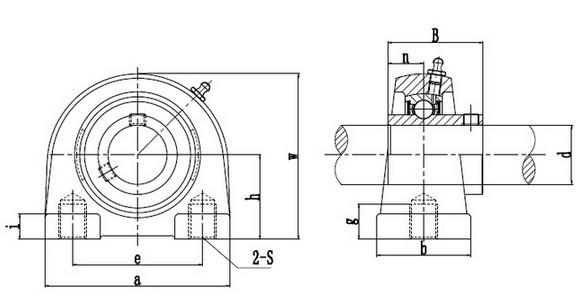

Main Dimensions:

Shaft Diameter d : 12 mm

Height of spherical seat centre (h) : 30.2 mm

Overall length (a) : 76 mm

Distance between attachment bolts (e) : 52 mm

Base width (b) : 38 mm

Thread for attachment bolts (S) : M10

Thread length (g) : 15 mm

Foot height (l) : 11 mm

Overall height (w) : 62 mm

Width of inner ring (B) : 31 mm

n : 12.7 mm

Bolt Size : M10
