UCPA209 Pillow block ball bearing units with 45 mm bore detail Specifications:

Housing material : gray cast iron or ductile iron

Bearing Material : 52100 Chrome Steel

Bearing type : ball bearing

Bearing No. : UC209

Housing No. : PA209

Housing Weight : 2.05 kg

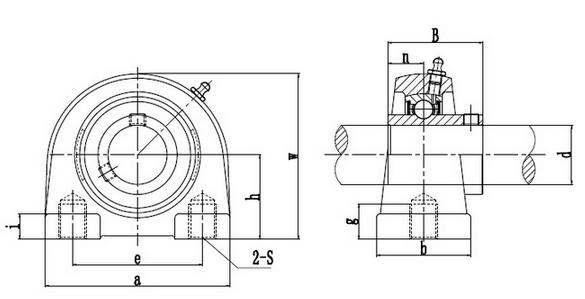

Main Dimensions:

Shaft Diameter d : 45 mm

Height of spherical seat centre (h) : 54.2 mm

Overall length (a) : 120 mm

Distance between attachment bolts (e) : 90 mm

Base width (b) : 54 mm

Thread for attachment bolts (S) : M14

Thread length (g) : 25 mm

Foot height (l) : 13 mm

Overall height (w) : 108 mm

Width of inner ring (B) : 49.2 mm

n : 19 mm

Bolt Size : M14
