UCHA204 Pillow block ball bearing units with 20 mm bore detail Specifications:

Housing material : gray cast iron or ductile iron

Bearing Material : 52100 Chrome Steel

Bearing type : ball bearing

Bearing No. : UC 205

Housing No. : HA 205

Housing Weight : 0.70 kg

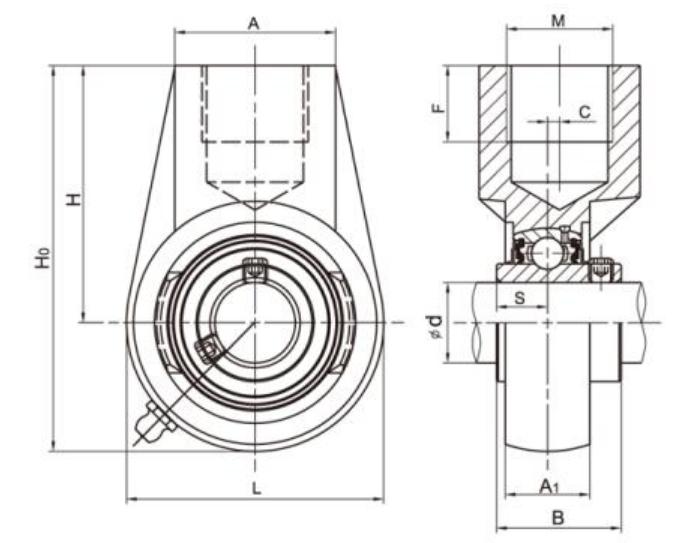

Main Dimensions:

Shaft Diameter d : 20 mm

Housing Outside Diameter (L) : 64 mm

Housing Overall Length (Ho) : 96 mm

Housing Outside Diameter (H) : 64 mm

A : 40 mm

Mounting Thread M(in) : G3/4

F : 19 mm

C : 0

A1 : 21 mm

Length Thru Bore (B) : 31 mm

S : 12.7 mm
